Oryx specializes in custom measurement solutions for industrial applications. We focus on non-contact, precision thickness and width measurement of webs and strips.

We provide turn-key, rugged, factory connectable equipment to the clients requirement with an emphasis on consistent, automated operation, requiring virtually no operator training for regular and reliable use.

Oryx controller hardware is common across all of our devices ensuring consistent design and build as well as reliable spare parts and future compatibility. Our software architecture is tightly version controlled sharing a common backbone.
This strategy allows us to simultaneously offer our clients custom system behavior, custom HMI displays, tailored data collection, alarming of metrics meaningful to your process, and custom factory connectivity options.

With this approach Oryx delivers a complete and custom system that is not a one-off. By being built on Oryx architecture your system allows for future modification and upgradeability in a reasoned, well managed way.

We measure microns on live processes in dynamic and sometimes chaotic industrial settings.

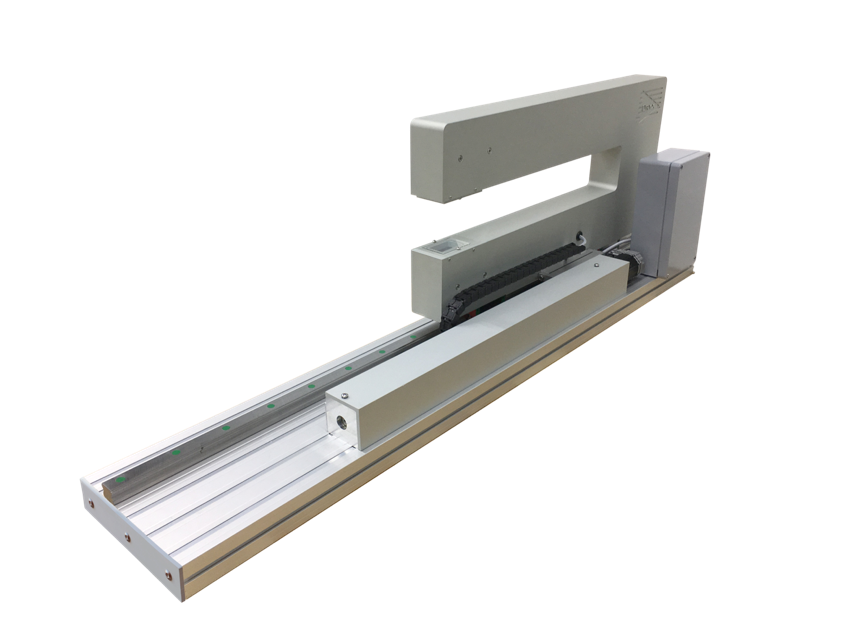

Oryx Thickness Measurement CFrame

How can Oryx configure a system that exactly meets your needs?

CUSTOM HARWARE

Tightly managed processing times achieve unmatched measurement speeds.

custom software

With complete control of every running processs, system stability can reliably be achieved.

modular platform

Oryx systems are easily customized to meet your needs, built on a common framework.

What problem are you trying to solve?

  • Process control signal outputs

  • Remote access or control room operation by engineers

  • Operator permissions and configurability

  • Intelligent data connectivity and integrataion

  • Powerful reporting and analysis capabilities

  • Edge finding | Obstruction detection

  • Multiple systems linked on the same line, or in the same plant

  • C1D1 | Extreme environment capable systems

  • red laser spot

    Metal strip thickness measurement

  • green laser spot

    Battery electrode thickness measurement

  • blue laser spot

    PTFE thickness measurement

  • red laser spot

    Rubber & Vinyl thickness measurement

  • green laser spot

    Fabric & blanket thickness measurement

  • blue laser spot

    Foam thickness measurement

  • red laser spot

    Coating thickness measurement

  • blue laser spot

    Clear plastic thickness measurement

Useful, intelligible, HMI's

Every process is unique with it's own critical parameters.

Oryx exposes actionable process information to operators.

Shown here is a profile thickness display, the numerical readouts on the left of the display are analyzers which are customizable and are able to be ordered to the client's preference.
Oryx Thickness Measurement Profile Display

Oryx Thickness Measurement Circular Custom Display

Custom Display:

While the Oryx C-Frame measures thickness and width of a flat web, the critical process fifteen feet up-machine is extrusion through a circular die.

Operators have eight bolts to adjust the thickness profile. The custom Oryx display allows the operators to quickly react from fifteen feet away to bring the process into tolerance and maximize yield.

Custom Display:

The critical parameters of a helical wire screen-making process involves extremely small wire gaps and precise, consistent slope of the wire surface. What once took hours with suspect R&R, now takes seconds with proven precision capability.

Operators can now immediately validate machine setup and make salable and traceable parts with confidence.
Oryx Width Measurement Custom Display

Oryx Thickness Measurement HMI Product Recipe Config Screen

Configure -> with permission

Setting up your system and starting a measurement job shouldn't be complicated. Oryx is focused on being intuitive to operate. Lock down your configuration to minimize operator error.

Every workflow is different. Oryx can fit into your workflow.

Want to automate batch information into our system? We do that too.

We've got you covered:

Here's a fast wire inlay process on a winder:

• Strip width measurement
• Strip thickness measurement
• Wire inlay placement
• Wire inlay step height
• Integrated into the machine control system
• Data output to the plant historian
• Remote access
• We've got you covered.

Useful, intelligible, HMI's

Every process is unique with it's own critical parameters.

Oryx exposes actionable process information to operators.

Shown here is a profile thickness display, the numerical readouts on the left of the display are analyzers which are customizable and are able to be ordered to the client's preference.
Oryx Thickness Measurement Profile Display

Oryx Thickness Measurement Circular Custom Display

Custom Display:

While the Oryx C-Frame measures thickness and width of a flat web, the critical process fifteen feet up-machine is extrusion through a circular die.

Operators have eight bolts to adjust the thickness profile. The custom Oryx display allows the operators to quickly react from fifteen feet away to bring the process into tolerance and maximize yield.

Custom Display:

The critical parameters of a helical wire screen-making process involves extremely small wire gaps and precise, consistent slope of the wire surface. What once took hours with suspect R&R, now takes seconds with proven precision capability.

Operators can now immediately validate machine setup and make salable and traceable parts with confidence.
Oryx Width Measurement Custom Display

Oryx Thickness Measurement HMI Product Recipe Config Screen

Configure -> with permission

Setting up your system and starting a measurement job shouldn't be complicated. Oryx is focused on being intuitive to operate. Lock down your configuration to minimize operator error.

Every workflow is different. Oryx can fit into your workflow.

Want to automate batch information into our system? We do that too.

We've got you covered:

Here's a fast wire inlay process on a winder:

• Strip width measurement
• Strip thickness measurement
• Wire inlay placement
• Wire inlay step height
• Integrated into the machine control system
• Data output to the plant historian
• Remote access
• We've got you covered.

Oryx clients don't run without Oryx.
Consequently we treat the reliability and usability of our gauges
as mission critical.
